宽温度贴片铝电解电容RVH系列

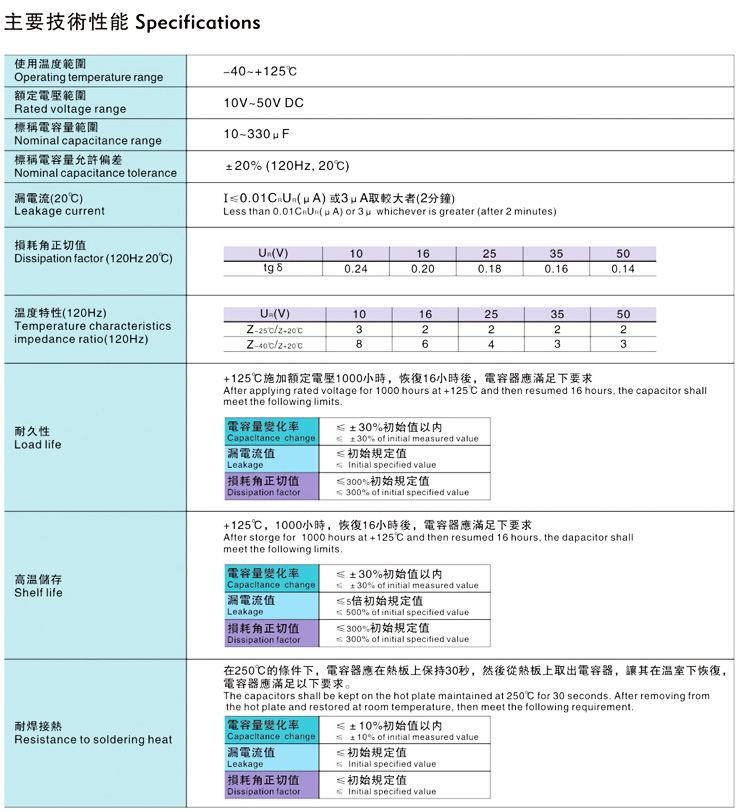

使用温度范围:-55℃～+125℃
2000小时额定
工作电压:6.3V ～50V DC
电容量范围: 0.1uf～330uf
电容量容许偏差:±20%（120HZ. 20℃）

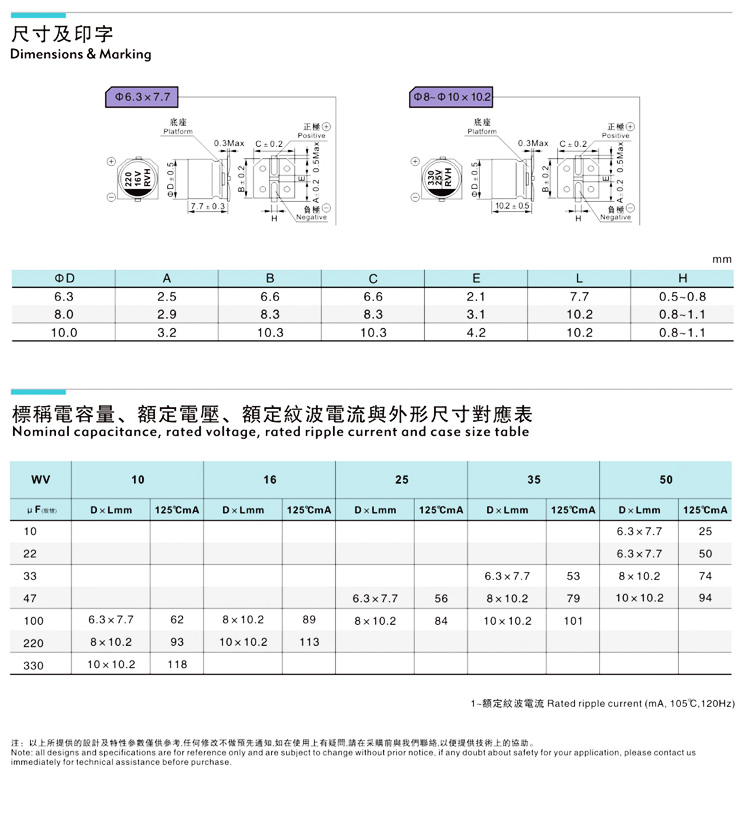

产品尺寸 Case diameter: φ4*5.4,φ5*5.4、φ6.3*5.4、φ6.3*7.7、φ8*10.5、φ10*10.5等.
适合于回流焊 Reflow soldering is available.
适合于高密度表明贴装 Available for high density surface mounting.ROHS指令 (2002/95/EC) Adapted to the ROHS directive (2002/95/EC)
应用范围: 应用于DVR、安防产品、工业控制板等。

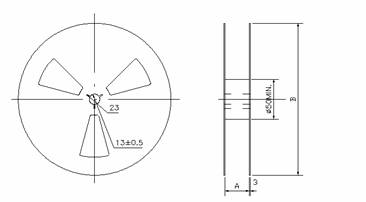

卷盘
|
ФD×L
|
4×5.4/5.8
|
5×5.4/5.8
|
6.3×5.4/5.8/7.7
|
8×6.2/10.5
|
10×10.5
|
10×13.5
|
12.5x13.5/16
|
16x16.5
|
|
A
|
14
|
14
|
18
|
26
|
26
|
26
|
34
|
46
|
|
B
|
382
|
382
|
382
|
382
|
382
|
382 / 332*
|
382 / 332*
|
332*
|
内盒
包装数量
|
Size
|
Reel
(pcs)
|
In-Box
(reels)
|
Quantity / In-Box
(pcs)
|
4 In-Boxes / Carton
(pcs)
|
|
Φ4×5.4 / 5.8
|
2,000
|
6
|
12,000
|
48,000
|
|
Φ5×5.4 / 5.8
|
1,000
|
6
|
6,000
|
24,000
|
|
Φ6.3×5.4 / 5.8
|
1,000
|
5
|
5,000
|
20,000
|
|
Φ6.3×7.7
|
1,000
|
5
|
5,000
|
20,000
|
|
Φ8×6.2
|
1,000
|
5
|
5,000
|
20,000
|
|
Φ8×10.5
|
500
|
4
|
2,000
|
8,000
|
|
Φ10×10.5
|
500
|
4
|
2,000
|
8,000
|
|
Φ10×13.5
|
300 / 250*
|
4
|
1,200 / 1,000*
|
4,800 / 4,000*
|
|
Φ12.5×13.5
|
200 / 150*
|
3
|
600 / 450*
|
2,400 / 1,800*
|
|
Φ12.5×16
|
200 / 150*
|
3
|
600 / 450*
|
2,400 / 1,800*
|
|
Φ16×16.5
|
125*
|
2
|
250*
|
